Hobbywing Serveru - Citi piederumi Hobbywing Motor Hobbywing EZRUN 56118SD G2 800Kv - black

Pieejamība: 5-7 dienas Noliktavā 1
ID: 127704
Produkta kods: HW30402901
Svītrkods: 6938994406284

185.56€
(Bez PVN: 153.36€)

Apmaksas iespējas

   Imagem   Imagem   Imagem   Imagem   Imagem   Imagem

Piegādes iespējas

Imagem   Imagem   Imagem


Preces apraksts

EAN: 6938994406284

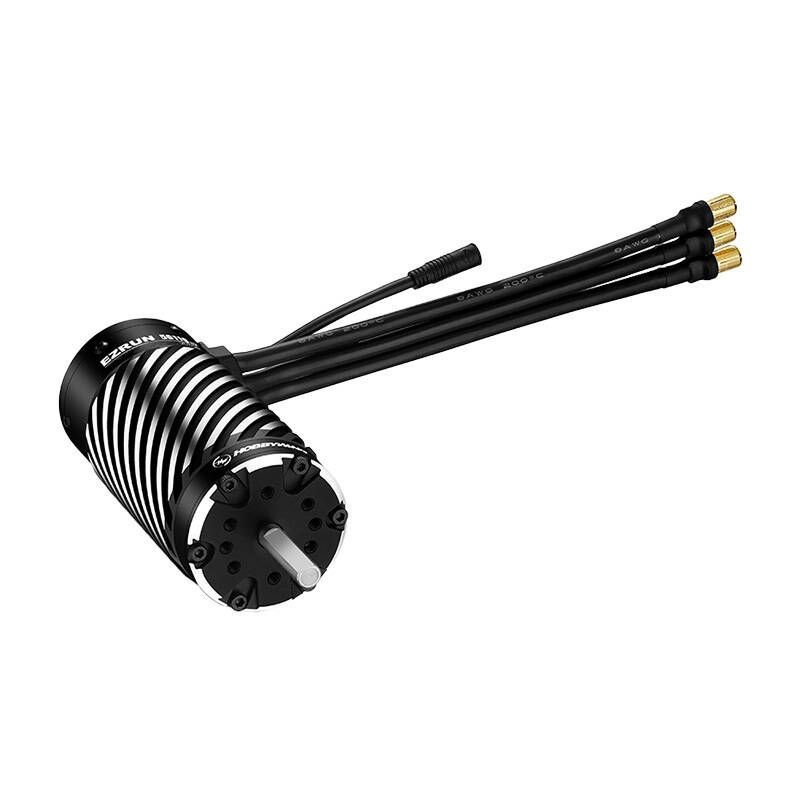

Hobbywing EZRUN 56118SD G2 800Kv motor - black

This high-performance, four-pole AC motor with sensors is ideal for tuning 1:5 scale RC vehicles such as off-road buggies and trucks. Compared to standard units of the same size, it offers higher performance and automatic optimization, and combined with the separately available EZRUN MAX5 HV G2 controller, it also supports additional functions, such as thermal protection. The product is waterproof and dustproof, and thanks to its modular design, maintenance and possible repairs are no problem.

Efficient, reliable operation

The motor has been optimized for use with the Hobbywing EZRUN MAX5 HV G2 controller, which can automatically identify it to create an efficient drive system. Compared to the previous generation, the product is distinguished by a waterproof cable and a new sensor system with faster response. It also provides stable torque over the full range of operating speeds. In addition, a high-precision encoder guarantees a clean signal and high resistance to noise. Also noteworthy is the patented technology with Hall sensors.

Improved design

Thanks to its housing made of high-end CNC aluminum alloy, the motor is very durable and resistant to damage. Its additional advantages include an improved rotor design, a Kevlar-coated stainless steel shaft, 0.2mm-thick silicon steel thin plates and precision ball bearings that provide impressive durability and smooth operation.

Included

  • Motor
  • Operating instructions



ManufacturerHobbywing
ModelHW30402901
Motor typeAC
RPM per volt800 rpm/V
Li-Po8-12 cells
Open circuit current6,9 A
Number of poles4
Diameter56 mm
Length of motor housing119.2 mm
Shaft diameter8 mm
Free shaft length30 mm
Weight1277 g
Synchronization
Hall sensorYes
